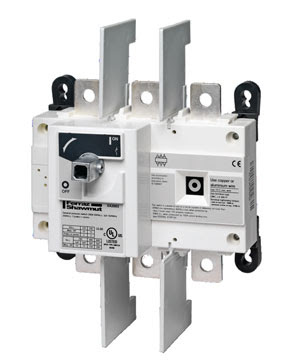

The new SX series of non-fused switches have a 40% smaller footprint than their predecessors, and have a lower profile to allow for a secure mounting in the toughest applications! They are listed to UL98 for “service entrance” applications and are available in 3 or 4-pole configurations. The mounting feet are located on the corners and can swivel to accommodate design variations. Flexible terminal barriers allow for wire bending.
Highlights
Ratings
- Front Operation
- 200kA SCCR
- High horsepower ratings
- Double-break silver-plated contacts
- Clear On/Off indication
- 3 and 4-pole versions available
- Flexible terminal barriers
Volts : 600VAC, 250VDC
Amps : 100A, 200A, 400A
SCCR : 200kA with class J fuses
Amps : 100A, 200A, 400A
SCCR : 200kA with class J fuses
