New Literature from CST/Crydom

Solid State Relays, Solid State Control Relays, I/O Modules

Crydom is the world leading manufacturer of Solid State Relays, constantly innovating new circuit and technology-related inventions to satisfy the switching needs of the most demanding applications.  Crydom’s solid state control relays incorporate control circuitry, intelligence, indication and feedback to an SSR function, further enhancing the cost-performance benefits for the end user.  Crydom also offers a broad line of digital I/O modules and mounting boards, designed for long, reliable service in demanding industrial environments.

Hybrid Solid State Contactors

Crydom has combined solid state and mechanical switching technologies to create its line of Hybrid Solid State Contactors.  The RHP contactors provide the performance advantages of both technologies in an industry standard DP contactor package.  This combination results in a fast switching, highly reliable contactor that does not require the use of a heat sink.

Power Modules

Crydom Power Modules are power switching/control circuit elements integrated into convenient isolated-base packages, offering a broad spectrum of commonly used Diode, SCR, or SCR/Diode circuit configurations and ratings.

Order CST/Crydom Literature

CST/Crydom Technical Datasheets

Pepperl+Fuchs Reflectors for High Pressure Chemical Washdown

Pepperl+Fuchs introduces Reflectors’ H20X40F and H60F rectangular reflectors for use with photoelectric sensors in food and beverage processing applications.  They feature IP69K protection to withstand severe high pressure and high temperature washdown, and Ecolab certification for compatibility with common caustic cleaning agents and disinfectants.

“These reflectors are ruggedized to survive extreme washdown conditions in which other reflectors would get water between the reflector and backing, or even break down over time.  They can also be used in applications that require hygienic design, and that require components resistant to common caustic cleaning agents and detergents. This means less time and money spent replacing damaged reflectors in these environments,” says Jeff Allison, Product Manager.

The H20X40F and H60F are corner-cube reflectors, meaning that they can be used with polarized and non-polarized retro-reflective photoelectric sensors. These reflectors are an ideal complement to Pepperl+Fuchs’ ML7 series photoelectric sensors, which are also IP69k protected and have ECOLAB certification.

Pepperl+Fuchs Reflectors

Pepperl+Fuchs Technical Datasheets

Red Lion Controls GSM Cellular Connectivity for G3 Series HMIs

Red Lion announces the release of the G3GSM - GSM Cellular Modem card for the G3 series HMIs. This new expansion card allows the G3 to communicate via cellular technology, providing unprecedented connectivity for remote and mobile applications.

The G3 series of HMIs have always provided cellular connectivity, but only through the use of external third-party modems. By embedding the technology within the interface, Red Lion has created a reliable, easy to configure HMI for remote asset management applications. The expansion module requires a standard network provider "SIM card", allowing you to choose their own cellular plan.

Once connected to a cell network, you can take advantage of the G3's powerful feature set. The built-in web server allows you to monitor and control their processes, while the advanced messaging function dials out to provide early warning of process failures via text messages and email. The integrated IT-Ready data logger records system performance and events for later review. The powerful port-sharing feature even allows many PLCs and other devices to be remotely reprogrammed through the G3 for the ultimate in remote system management.

The G3GSM card is configured via Red Lion's free Crimson® 2.0 software.

Red Lion Controls G3GSM Cellular Modem Card

Red Lion Controls Technical Datasheets

New Literature from Phoenix Contact

Wireless Ethernet Radio

802.11/Wi-Fi connectivity is an alternative to traditional wiring methods for high-speed/high-bandwidth applications in the industrial control process.  Phoenix Contact’s RAD-Line series of Ethernet Radios easily integrates an IEEE 802.11/Wi-Fi-based radio into an industrial control process.

Water Management Solutions

Decades of experience and reliability has made Phoenix Contact a trusted partner in automating water management on numerous national and international projects.  Phoenix Contact’s solution system ensures problem-free processing in all system parts at all sites.

Trusted Wireless Ethernet (TWE) Radios

The RAD-ISM-900-EN-BD industrial radio transceiver from Phoenix Contact brings Ethernet or serial data from remote locations to IP based networks.  It is suitable for SCADA applications, and the highly reliable and secure transmissions make it ideal for integrating processes that contain sensitive revenue generating data.

CONTACTRON Wear-Free Switching with Solid-State Contactors

Phoenix Contact’s CONTACTRON three-phase “4 in 1” solid-state reversing contactors are used for motors with an engine power of up to 4kW.  Four functions are combined in one device: right contactor, left contactor, motor protection and emergency stop up to category 3.

nanoLine Control System

The nanoLine from Phoenix Contact is a new control platform with easy applications programming and flexible, modular configurations.  It requires virtually no support and is targeted for basic applications in competitive markets where connectivity is increasingly required.

STEP POWER Power Supply
Phoenix Contact’s STEP POWER power supplies are new low profile devices for DC power applications in shallow cabinets and junction boxes.  STEP POWER offers double power density due to their high level of efficiency.  Maximum energy efficiency is achieved through low power dissipation in idling mode.

Order Phoenix Contact Literature

Phoenix Contact Technical Datasheets

Pepperl+Fuchs RMS Microwave Motion Sensors for Automatic Pedestrian Doors

Pepperl+Fuchs introduces RMS Series Microwave Motion Sensors.  These microwave motion detection sensors are specifically designed to actuate automatic sliding, swinging, folding or revolving pedestrian doors when approaching traffic is detected.

Three models are currently available.  The RMS-M-NA sensor is the basic model with 1 SPST relay output that operates in normally-open or normally-closed mode.  The RMS-D-NA sensor features “turtle-mode” capability to detect even extremely slow motion, as well as cross-talk suppression that tunes out people who are walking past, but not towards, the door.  In addition to these features, the RMS-D-RC-NA sensor includes a remote control with an LCD display for easy programming and adjustments, and to quick viewing of current settings and menu options.

“Compared with infrared based sensing technology, RMS microwave motion sensing is more immune to the effects of vibration, sunlight and temperature that can otherwise compromise reliable operation.  Microwave sensing can also be mounted higher to detect approaching persons over a broader area, and it can sense through many types of enclosures,” says Jeff Allison, Product Manager.

RMS microwave motion sensors have a compact, pod-shaped housing, with no external adjustments to eliminate tampering.  They are easy to install and adjust, and can be mounted as high as 4 meters (13 feet).  They are compliant as an activation device to ANSI/BHMA 156.10-2005, and are FCC compliant for use in the United States.

Pepperl+Fuchs RMS-M-NA Microwave Motion Sensor

Pepperl+Fuchs RMS-D-NA Microwave Motion Sensor

Pepperl+Fuchs RMS-D-RC-NA Microwave Motion Sensor

Pepperl+Fuchs Technical Datasheets

New Products from Banner Engineering

WORLD-BEAM QS30ELVC Clear Object Detector

The QS30ELVC was developed to provide an easy-to-use, high-performance retroreflective sensor optimized for detection of clear, translucent, or opaque objects. Built on an advanced optical design, the sensor rejects false prox signals from mirror-like surfaces without relying on the polarizing filters used on previous Banner sensors. The optical design of the sensor ensures reliable detection of plastic PET bottles, glass bottles and containers, clear films and wrappers, and optically engineered surfaces such as mirrors, LCD glass with polarizing films, or semi-conductor wafers.

This sensor has a faster response time than ultrasonic sensors.

• Reliable detection of clear, translucent, or opaque targets including mirror-like surfaces
• Automatic compensation algorithm compensates for dust or contamination on the sensor or reflector
• 3 selectable thresholds based on type of target being detected
• Easy configuration of sensor via push buttons or remote wire
• Includes a BRT-2X2LVC reflector and a BRT-40X19A reflector in the box
• Easy-to-read operating status indicators
• Rugged IP67 NEMA 6 housing for harsh environments; 1200 psi washdown rated per NEMA PW12
• Compact housing, mounting versatility — 30 mm threaded barrel or side-mount

Banner Engineering QS30ELVC Clear Object Detector

24 Volt DC Power Supply

Designed to provide low noise DC power, the PSDINA-24-4 Power Supply is a DIN-rail mountable power supply for use with 24 Vdc-powered sensors, vision cameras and lighting systems in industrial automation applications.

Ultrasonic and photoelectric sensors always benefit from the use of a high quality and low noise power supply, and the model PSDIN-24-4 power supply meets the need perfectly. Vision cameras and lighting systems also place high demands on power supplies, and the PSDINA-24-4 power supply will provide reliable and consistent power for these devices as well.

The PSDINA-24-4 power supply is UL listed and CE approved. The supply has an efficiency of > 80% under load.

• Very low common-mode noise characteristic which provides “clean” power for sensors - even in noisy electrical environments.
• Accepts a world-wide range of AC input voltage: - (85 to 264V ac, 50 or 60Hz)
• Provides 24 V dc output voltage adjustable ±10%: - (21.6 to 26.4 V dc adj. 4 A max)
• Mounts to standard 35 mm DIN rail
• 96 Watt maximum output power
• Supply is protected against output over-voltage and over-current
• LED indication of over and under-voltage, short circuit, and over current conditions
• UL listed in the USA and Canada, and CE marked for sale in Europe.

Banner Engineering 24 Volt DC Power Supply

M25U Robust Stainless Steel Ultrasonic Sensor
The M25U was developed for use in sterile environments to work with strict clean-in-place (CIP) procedures involving high temperature washdown applications. This product is made with FDA-approved materials and will carry the Ecolab certification.

• Rugged IP69K-rated stainless steel design for use in demanding environments
• Dual range/dual resolution opposed mode ultrasonic sensors; ideal for sensing clear objects or materials
• Highly immune to ambient sonic and electrical noise
• 10 to 30V dc operating voltage
• Completely smooth barrel-style sensor has no grooves to allow buildup

Banner Engineering M25U Ultrasonic Sensor

Banner Engineering Technical Datasheets

New Literature from SMC Pneumatics

Silencers - NAN, NAMC Series

NAN silencers from SMC Pneumatics offer various styles and low backpressure in a compact, easy mounting design.  NAMC exhaust cleaners insure clean plant air and reduce noise pollution over 35dB, while removing over 99.9% of oil mist.

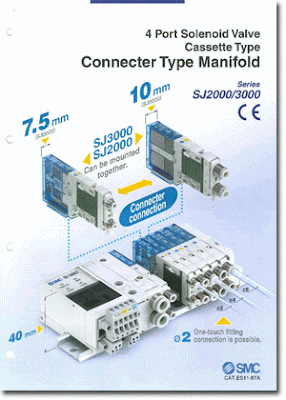

4-Port Solenoid Valve - Series SJ2000/3000

The SJ series was developed by SMC Pneumatics to offer a small, low profile, low maintenance, 4-port solenoid valve and manifold.  The series was designed in a cassette type format, uses a card-edge type connector, and is available in two compact sizes.  The SJ2000 measures 7.5mm wide, while the large SJ3000 model is only 10mm wide.  They can be combined in the same manifold, which can provide up to 24 stations and 32 solenoids.

3-Port Solenoid Valve - Series V100

SMC’s series V100 is one of the most advanced solenoid valves in today’s market.  The standard V100 uses only 0.35W, which is 76% less than comparable valves.  The low power model uses only 0.1W, reflecting dramatic savings of up to 93% compared to existing products.  Weighing in at a mere 12g, with flow rates between 8.4 and 24 l/minute, it’s the perfect solution when space, performance and component weight is critical.

Compact Direct Operated 2/3-Port Solenoid Valve for Water and Air

SMC Pneumatics’ VDW200/300 series is a compact, direct operated, 3-port solenoid valve for water, air and vacuum.  The use of a unique magnetic material reduces the operating resistance of moving parts, improving service life, wear and corrosion resistance.  VDW10/20/30 are the 2-port counterparts to this series.

5-Port Solenoid Valve - Series VQZ

Series VQZ base mount solenoid valves from SMC Pneumatics combine convenience with durability and performance in a more traditional mounting style.  Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.

3-Port Solenoid Valve - Series VQZ

Series VQZ base mount solenoid valves from SMC Pneumatics combine convenience with durability and performance in a more traditional mounting style.  Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.

Modular F.R.L. Unit

The cost-effective and clean-looking AC series by SMC Pneumatics allows you to pick a combination of modular style air preparation equipment that best suits your needs.  The series, available in eight size options to ensure optimum performance, offers energy savings, with higher flow rates.  Simple assembly and maintenance reduces downtime.

Order SMC Pneumatics Literature

SMC Pneumatics Technical Datasheets

New Literature from Linemaster Switch

Linemaster has become the foot switch of choice to those who require exceptional quality and engineered technologies that are uncommon and not standard.  New models such as the Air Seal, Atlas and Aquiline are examples of foot controls designed to meet tomorrow’s standards today.

Order Literature

Linemaster Switch Technical Datasheets

Turck DeviceNet Terminating Resistor with Voltage Monitoring

TURCK announces the new M12 eurofast ® terminating resistor with LEDs for voltage monitoring. The DeviceNet terminating resistor stabilizes and minimizes reflections on the bus line by matching impedance. The LED indicators emit red for incorrect polarity and green for correct polarity.

These connectors are rated for 250 Volts and 4 Amps and available in nickel plated brass or stainless steel. All connectors provide NEMA 1, 3, 4, 6P and IEC IP 67 protection.

Turck Terminating Resistor

Turck Technical Datasheets
